best wood FLOOR 160 Floor insulation

Wood fibre insulation board as substructure for floating dry screed constructions as well as for flowing and cement screeds.

With the optional insertion strip, it is possible to lay and fix floor coverings such as floorboards directly on the wood fibre insulation board.

0.041 [W/mK]

Nominal value of thermal conductivity λ_D according to DIN EN 13171
0.041 [W/mK]

Declared thermal conductivity λ_D according to SIA 279 (Switzerland)
0.043 [W/mK]

Rated value of thermal conductivity λ_B according to DIN 4108-4
160 [kg/m³]

Density

Fields of application

With foundation lath, to fasten floor structures
Without foundation lath, for application as sub-base for dry screeds

Areas of application according to DIN 4108-10DEO-ds

Delivery formats

Design
- Tongue and groove

	Format (mm)
	580 x 1500
40
60
80
Thickness (mm)

Technical data

Denomination of insulation board	WF-EN 13171-T5-CS(10\Y)150-TR25-WS1,0-MU5-AFr75-SD60-CP2
Standard	EN13171
Density	160 [kg/m³]
Nominal value of thermal conductivity λ_D	0.041 [W/(mK)]
Rated value of thermal conductivity λ_B	0.043 [W/(mK)]
Reaction to fire according to DIN EN 13501-1	E
Construction material class according to DIN 4102-1	B2
Full declaration	Wood fibers, PMDI gluing, paraffin
Production process	Dry process
Compressive stress at 10% compression	≥ 150 [kPa]
Tensile strength perpendicular to the plane of the board	≥ 25 [kPa]
Modulus of elasticity E_(d)	≥ 1,45 [N/mm2]
Water vapor diffusion resistance μ	5
Linear flow resistance	> 75 [kPa·s/m²]
Short time water absorption	< 1.0 [kg/m²]
Specific heat capacity	2100 [J/(kgK)]
Waste code according to AVV	030105, 170201

Quality

For your and our safety, we take great care to ensure a high standard of quality.

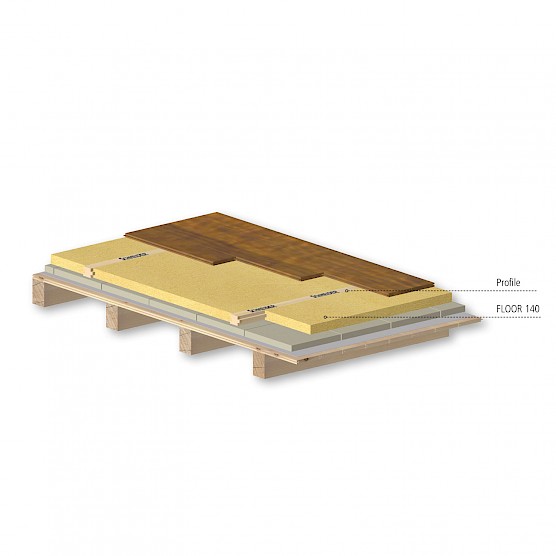

Example floor structure
