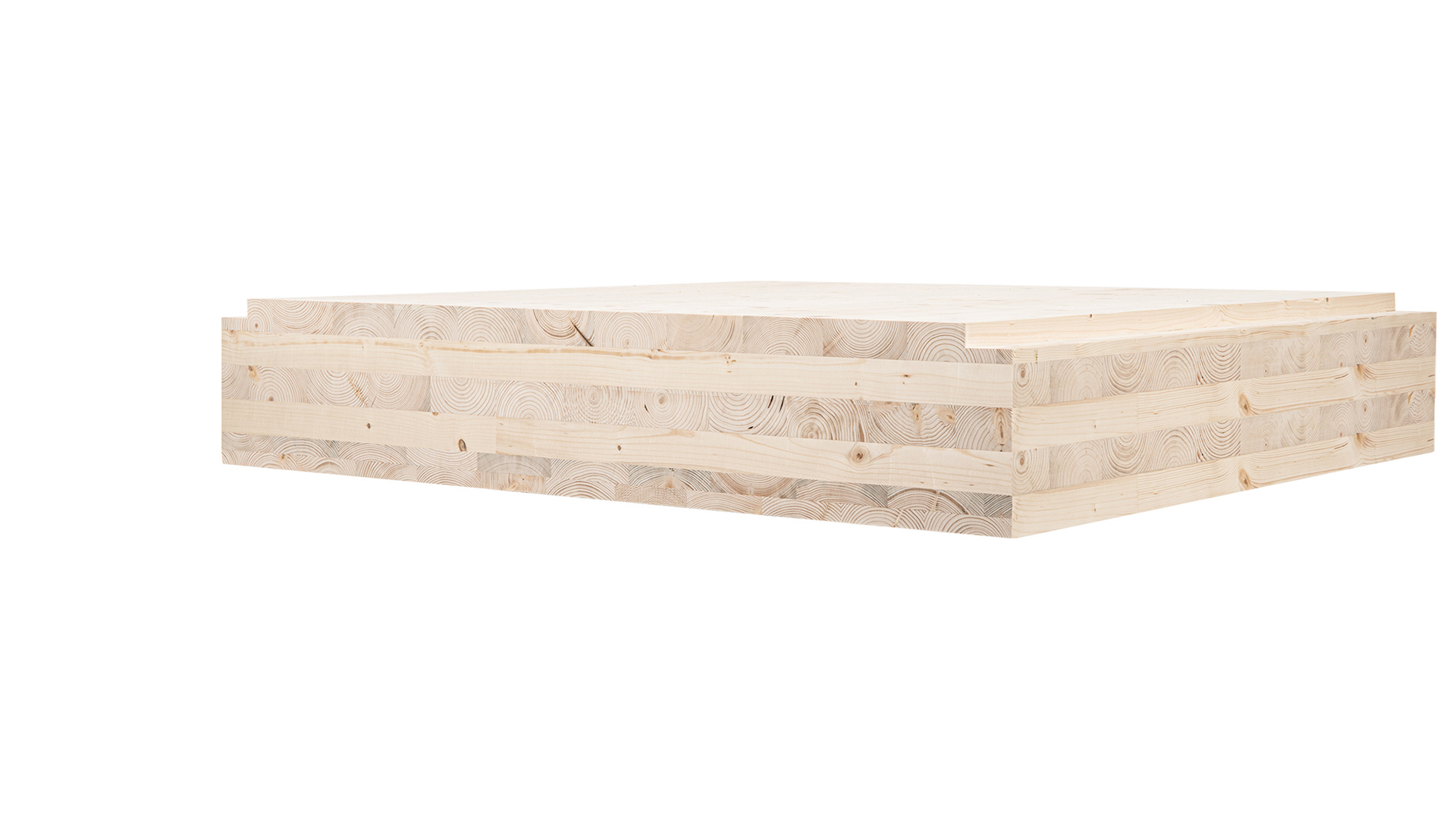

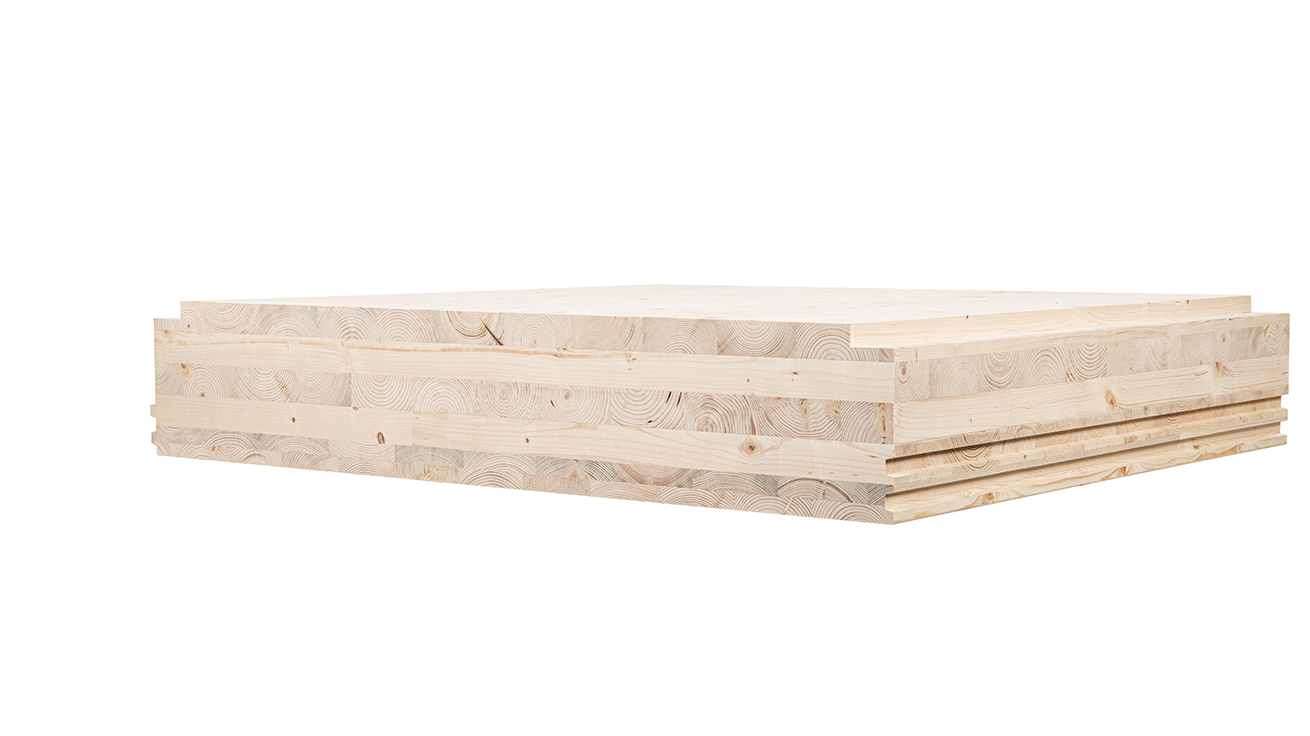

best wood CLT – CEILING Cross laminated timber for solid ceiling constructions
The best wood CLT is a solid wood element for load-bearing purposes. It consists of at least three layers of cross-glued solid wood panels. Due to its excellent structural-physical properties, it is suitable for any structural requirement.
The crosswise construction in combination with high-quality flank and surface gluing ensures a high degree of dimensional stability and only leads to minor swelling and shrinkage deformations in the case of moisture changes in the panel plane.
A high degree of prefabrication of the best wood CLT with downstream joinery as well as the simple connection of the best wood CLT elements ensures fast and economical assembly.
-
C24
Strength class
Fields of application
- Ceiling
- Roof
Delivery formats
-
Type of wood & Quality
- local spruce, industrial quality
- scandinavian spruce, visual quality
- local spruce KNOT-FREE
-
Layer structure
- 3 layers
- 5 layers
- 7 layers
| Width (mm) | |
| 900 to 1200 | |
| 60 | |
| 80 | |
| 90 | |
| 100 | |
| 120 | |
| 140 | |
| 160 | |
| 180 | |
| 200 | |
| 220 | |
| 240 | |
| 260 | |
| 280 | |
| Thickness (mm) | |
| Other wood species | Local silver fir by request |
| Length | 2.30-16.00 m |
| Width | 900–1200 mm, shiplap edge ≤1150 mm coverage dimensions |
| Minimum production length | per element width 8.00 m |
| Other cross sections | Available on request |
Visible qualities from 220 mm thickness (7 layers): See alternative CLT BOX
Technical data
| General building approval | ETA-21/0568 |
| Strength class | C24 |
| Application classes | Use in application classes 1 and 2 according to EN 1995-1-1 |
| Drying | Kiln dried, wood moisture max. 15 % at delivery |
| Bonding | Clear, water-proof gluing with polyurethane adhesives (free of formaldehyde) |
| Lamellae | 20, 30 and 40 mm, sorted for quality and finger-jointed |
| General information | Planed on four sides, bottom side chamfered 4 mm (measured diagonally), trimmed precisely ± 1 mm |
| Heat conductivity | λ = 0.13 (W/m*K) according to EN ISO 10456 |
| Specific heat capacity | 1600 (J/kg*K) according to EN ISO 10456 |
| Diffusion resistance | µ ≈ 40 according to DINV 4108-4 for the thickness of the lamellae and an additional 13 mm of wood thickness for each glued joint |
| Emission class | E1 according to DIN EN 717-1 |
| Shape change | At board level ≈ 0.02 % per 1 % change in wood moisture perpendicular to board level ≈ 0.24 % per 1 % change in wood moisture |
| Reaction to fire | D-s2, d0 according to DIN EN 13501-1 |
| Fireproofing | Verification possible via the free best wood STATICS software |
| Airtightness | Airtight after testing in accordance with EN 12114 from 60 mm |
Quality
For your and our safety, we take great care to ensure a high standard of quality.
